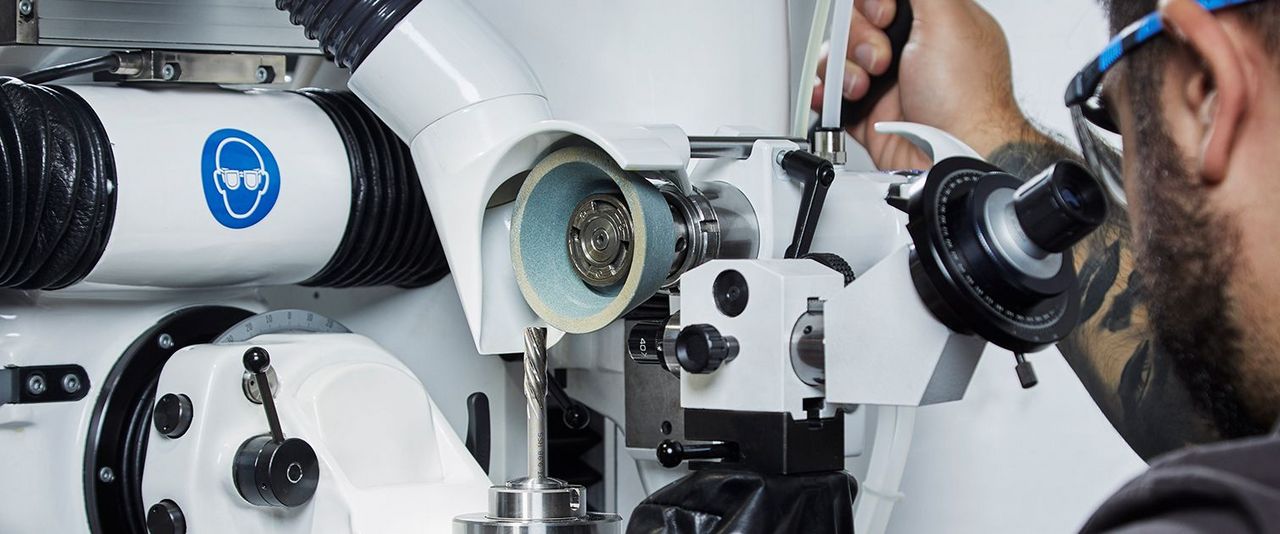

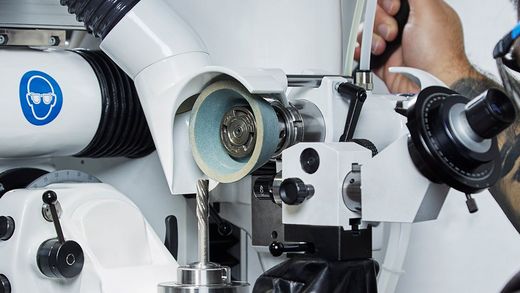

In recent years, we have provided you with spare parts and repairs on site. Since 2023, we also offer the overhaul of your WS11 or WS11-SP.
As a special offer, we can provide you with an existing reconditioned WS11 machine in exchange for your used WS11 or WS11-SP. If you are interested, please do not hesitate to contact us.
Your advantages at a glance
- Preliminary analysis of your WS11/WS11-SP and consultation in your plant
- Fast implementation of the repair by our experts
- Test report of the machine geometry
- Control system upgrades to the latest state of the art on your WS11/WS11-SP are possible
- On request: a free inspection after 12 months
Disassembly and cleaning
- Assembly is completely dismantled and disassembled
- Individual parts are cleaned & de-oiled in special cleaning machines
- Preparation for measurement
- On request: preparation of the parts to be painted
![EWAG WS11/WS11-SP machine and assembly before overhaul](https://cdn.ewag.com/fileadmin/_processed_/c/e/csm_Alte-Maschine-EWAG-WS11-alte-Baugruppe-vor-Ueberholung_df4e5d7a55.png)
![EWAG WS11/WS11-SP machine and assembly before overhaul](https://cdn.ewag.com/fileadmin/_processed_/c/e/csm_Alte-Maschine-EWAG-WS11-alte-Baugruppe-vor-Ueberholung_6a349b10ee.png)
![EWAG WS11/WS11-SP machine and assembly before overhaul](https://cdn.ewag.com/fileadmin/_processed_/c/e/csm_Alte-Maschine-EWAG-WS11-alte-Baugruppe-vor-Ueberholung_01a5f1f0ca.png)
Testing & measuring
- Checking the running smoothness and ease of movement of the assemblies
- Checking of bearing seats and fits by means of emptying
- Measuring of parallelism and dimensional accuracy
- Tolerances according to production drawings in the range of 0.002 mm are specified
![Old components of an EWAG WS11/WS11-SP before inspection](https://cdn.ewag.com/fileadmin/_processed_/c/c/csm_Alte-Bauteile-EWAG-WS11-WS11-SP-vor-Ueberpruefung_1911455b9f.png)
![Old components of an EWAG WS11/WS11-SP before inspection](https://cdn.ewag.com/fileadmin/_processed_/c/c/csm_Alte-Bauteile-EWAG-WS11-WS11-SP-vor-Ueberpruefung_3d9dc9a3bd.png)
![Old components of an EWAG WS11/WS11-SP before inspection](https://cdn.ewag.com/fileadmin/content_live_2019/www.ewag.com/00_pic/06_customer_care/Baugruppenueberholung-EWAG-WS11/Alte-Bauteile-EWAG-WS11-WS11-SP-vor-Ueberpruefung.png)
Evaluation and replacement
- old design/assembly will be replaced by the current version if spare parts are available
- Exclusively at EWAG: Conversion of the existing electrics and operational system to external control cabinet and operating element according to current DIN standard
![Electrics of an EWAG WS11/WS11-SP before renewal](https://cdn.ewag.com/fileadmin/_processed_/2/0/csm_Alte-Elektrik-einer-EWAG-WS11-vor-Baugruppenueberholung_ff3ba7af03.jpg)
![Electrics of an EWAG WS11/WS11-SP before renewal](https://cdn.ewag.com/fileadmin/_processed_/2/0/csm_Alte-Elektrik-einer-EWAG-WS11-vor-Baugruppenueberholung_a9ac8fe45f.jpg)
![Electrics of an EWAG WS11/WS11-SP before renewal](https://cdn.ewag.com/fileadmin/content_live_2019/www.ewag.com/00_pic/06_customer_care/Baugruppenueberholung-EWAG-WS11/Alte-Elektrik-einer-EWAG-WS11-vor-Baugruppenueberholung.jpg)
Reconditioning and assembly
- Grinding in new bearing seats
- Fitting of the new components
- Adapt or create new schematic and drawings
- Compile new operating instructions
![Assembly of an EWAG WS11/WS11-SP after assembly overhaul](https://cdn.ewag.com/fileadmin/_processed_/d/6/csm_Baugruppe-EWAG-WS11-WS11SP-nach-Ueberholung_dfb310f186.png)
![Assembly of an EWAG WS11/WS11-SP after assembly overhaul](https://cdn.ewag.com/fileadmin/_processed_/d/6/csm_Baugruppe-EWAG-WS11-WS11SP-nach-Ueberholung_23fbc3fd9e.png)
![Assembly of an EWAG WS11/WS11-SP after assembly overhaul](https://cdn.ewag.com/fileadmin/_processed_/d/6/csm_Baugruppe-EWAG-WS11-WS11SP-nach-Ueberholung_66ee7991f3.png)
Pre-acceptance of the machine at EWAG and test grinding
- Create measurement reports
- Create final inspection certificate
- Prepare machine for shipment
